LoDi-S88-Adapter

The LoDi-S88 adapter

The LoDi-s88 adapter, for easily bringing old S88 modules into the system.

Many modellers still have one or another old S88 module on their layout.

With our adapter you can bring these modules up to the N standard. In many control programs the old modules work well for push-button actions. The adapter is a real all-rounder and slots straight into an existing bus.

Features of the LoDi-S88 adapter

• A simple adapter for every S88 standard bus.
• Conforms to s88, s88N, S88.2.

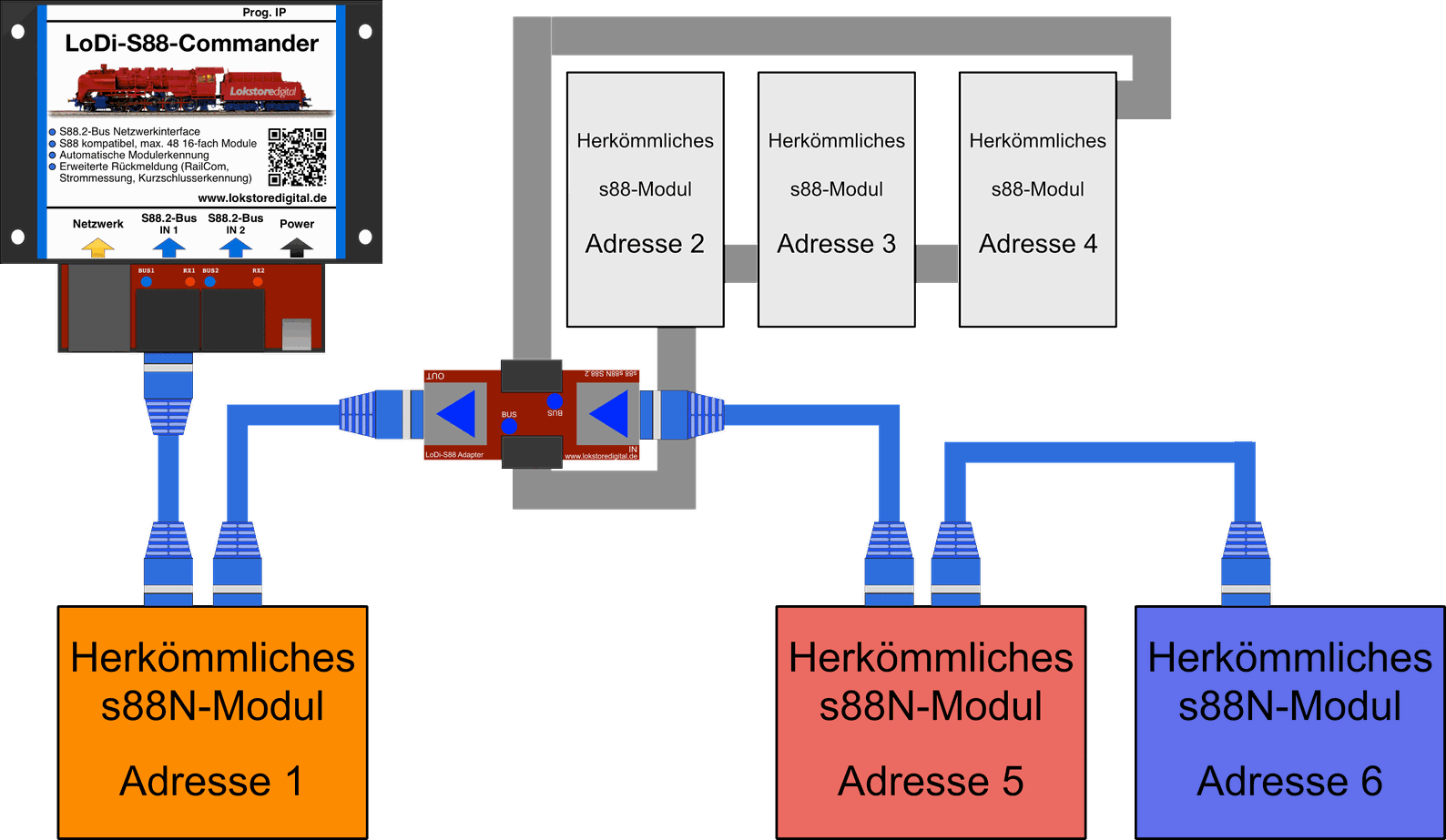

1. The LoDi-S88 adapter, its connectors and LEDs

For bringing in old s88 modules with a 6-pin connector we have an adapter you can use as follows. The adapter works for one module or for several at once.

The LoDi-S88-Commander detects whether it is dealing with s88 modules or S88.2 modules.

Conventional command stations, or other interfaces on the market, can be connected directly. The adapter gives you a way from s88 to the newer s88N.

The LEDs on the LoDi-S88 adapter show whether the s88 bus is being supplied with power.

2. Technical data
