LoDi-Rektor

To connect the LoDi-Rektor to the LoDi-Con, proceed as follows:

First tap the "house", which always takes you back to the main screen.

From there go to "Settings" > "Command station" >

If command stations are already listed here, you can click "Search for command stations".

The LoDi-Con now searches the network and shows the compatible stations it finds.

Now choose the LoDi-Rektor you want to connect to the LoDi-Con. In our example it is the top one.

Note:

(If you only have the LoDi-Rektor on the network, this menu will also show a z21.

That is because the LoDi-Rektor understands the z21 protocol as well, so that a Roco Wi-Fi handheld can connect to it. In this case please use the LoDi-Rektor.

(Devices shown green in the "Search for command stations" overview are already known to the LoDi-Con.)

You can change the name of the LoDi-Rektor if you like.

The LoDi-Con now connects to the LoDi-Rektor.

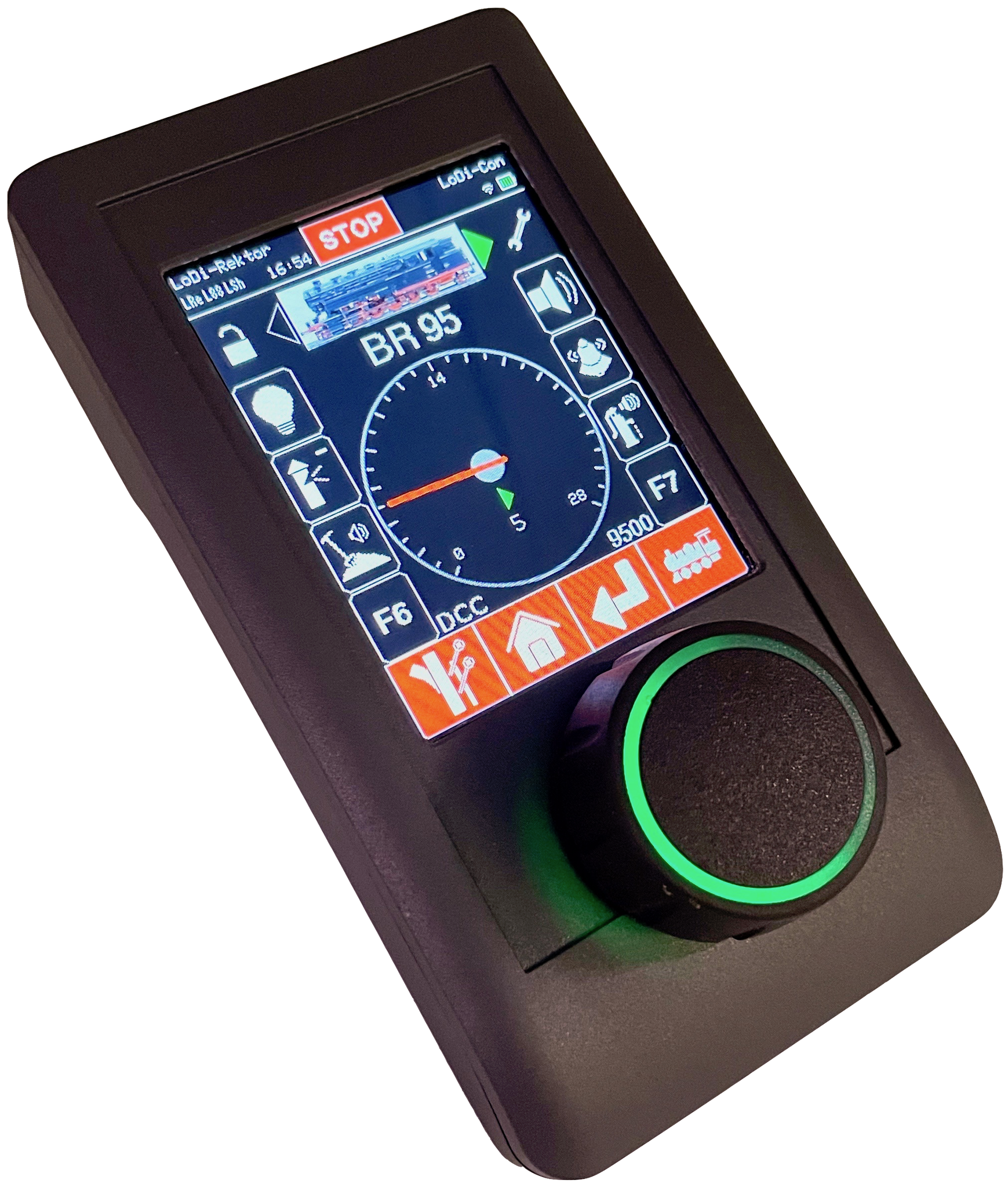

Every connected command station is shown at the top left of the display.

A new symbol (LRe) for the LoDi-Rektor now has to appear at the top left. If that LRe is steady, the connection is up. If it blinks, the LoDi-Con has no connection to the LoDi-Rektor or is trying to establish one.

Tapping the top left takes you to the overview of command stations, which also shows whether a connection is active. You can now tap the LoDi-Rektor to see its IP address and status.
