LoDi-Verteiler 2*9

Introducing:

The LoDi distribution board series.

On the layout, and in other extra-low-voltage applications, you regularly need to split a line quickly and simply — a common return, say, or the positive pole of a model railway transformer that then feeds house lighting, and so on . . .

That is what we created the LoDi distribution board series for.

With these modules you can distribute the cables easily over screw terminals.

Please note: always work with ferrules where you can.

You will find those and the matching model railway cable in our LoDi shop shortly.

Features of the LoDi distribution board 2*9

• A simple distribution strip with screw terminals, maximum 10 amperes at a maximum of 60 volts.
• Indication for AC and DC, and of which side carries the positive pole.
• Passes the incoming voltage on to the next board.

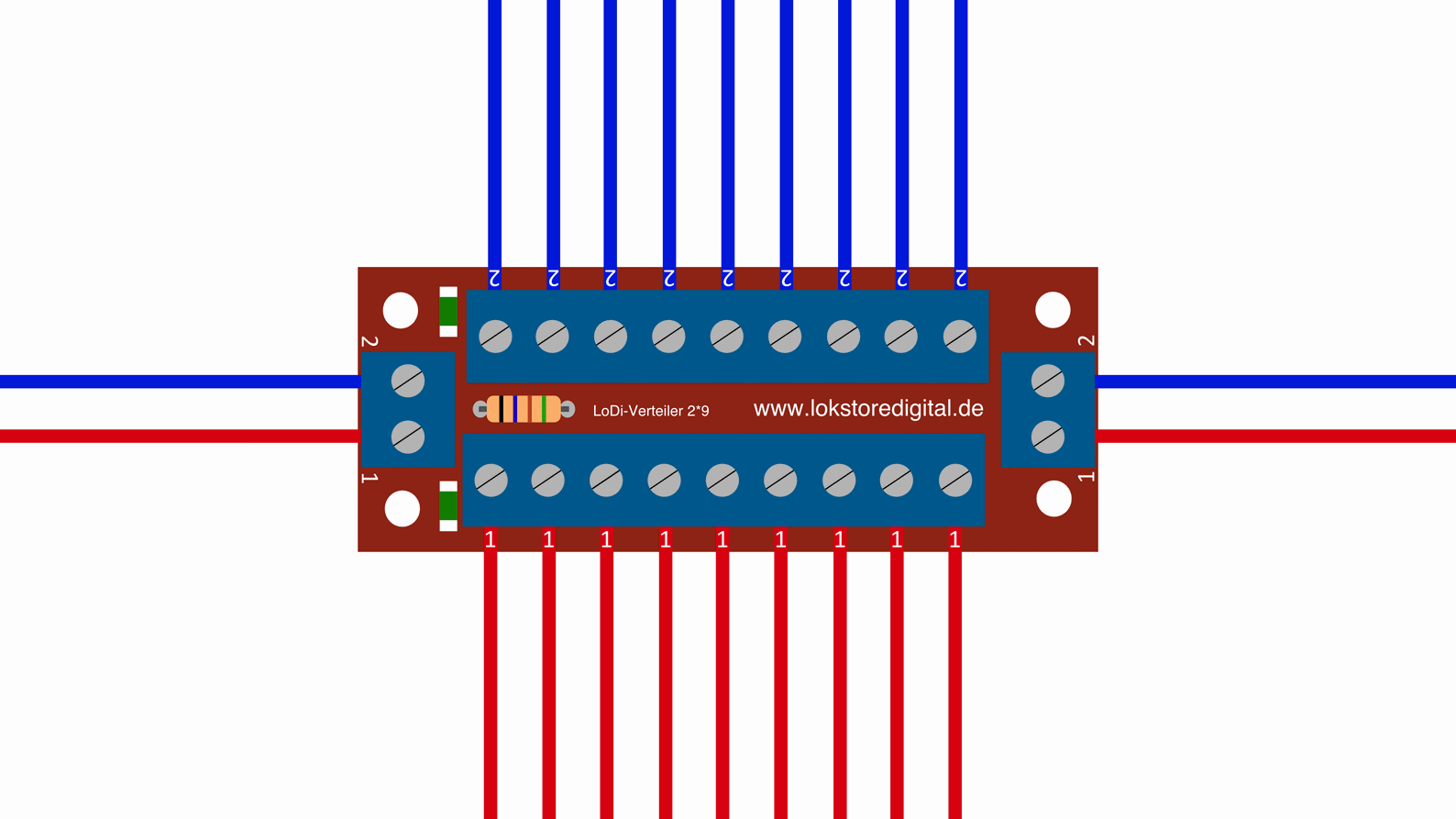

1. The LoDi distribution board 2*9, its connections and LEDs

The LoDi distribution board has 2*9 output terminals. It is fed from the left-hand side, where there are two LEDs, one above and one below. Whichever voltage you want to distribute — AC or DC — the board shows it.

You can also see which side carries the positive pole, because the LED on that side lights green.

With AC and with a digital signal, both LEDs are lit.

2. Technical data

The LoDi distribution board 2*9 carries a total of 10 amperes.

0–60 volt AC or DC input
