LoDi-WD-Diode
The LoDi-WD diode is an adapter board for wiring motor turnouts simply, to connect them to the LoDi-83-AC or LoDi-Operator 4-WD-AC.
From the three output leads the LoDi-WD diode rectifies the current so that a motor turnout drive can be driven directly with two wires.

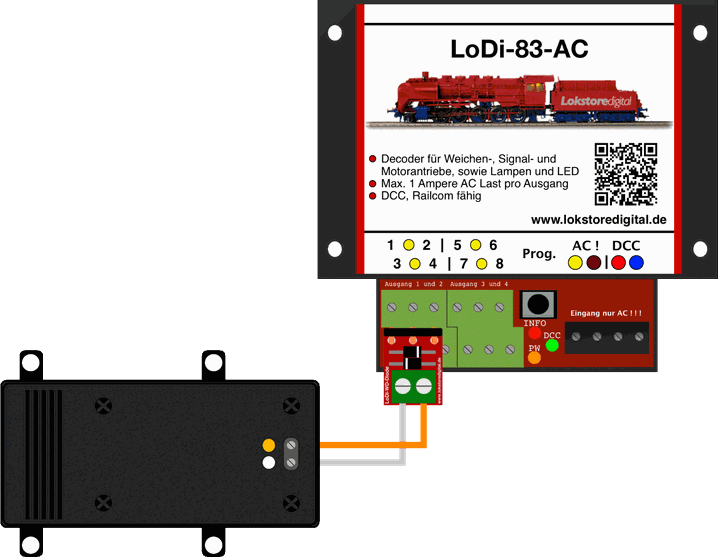

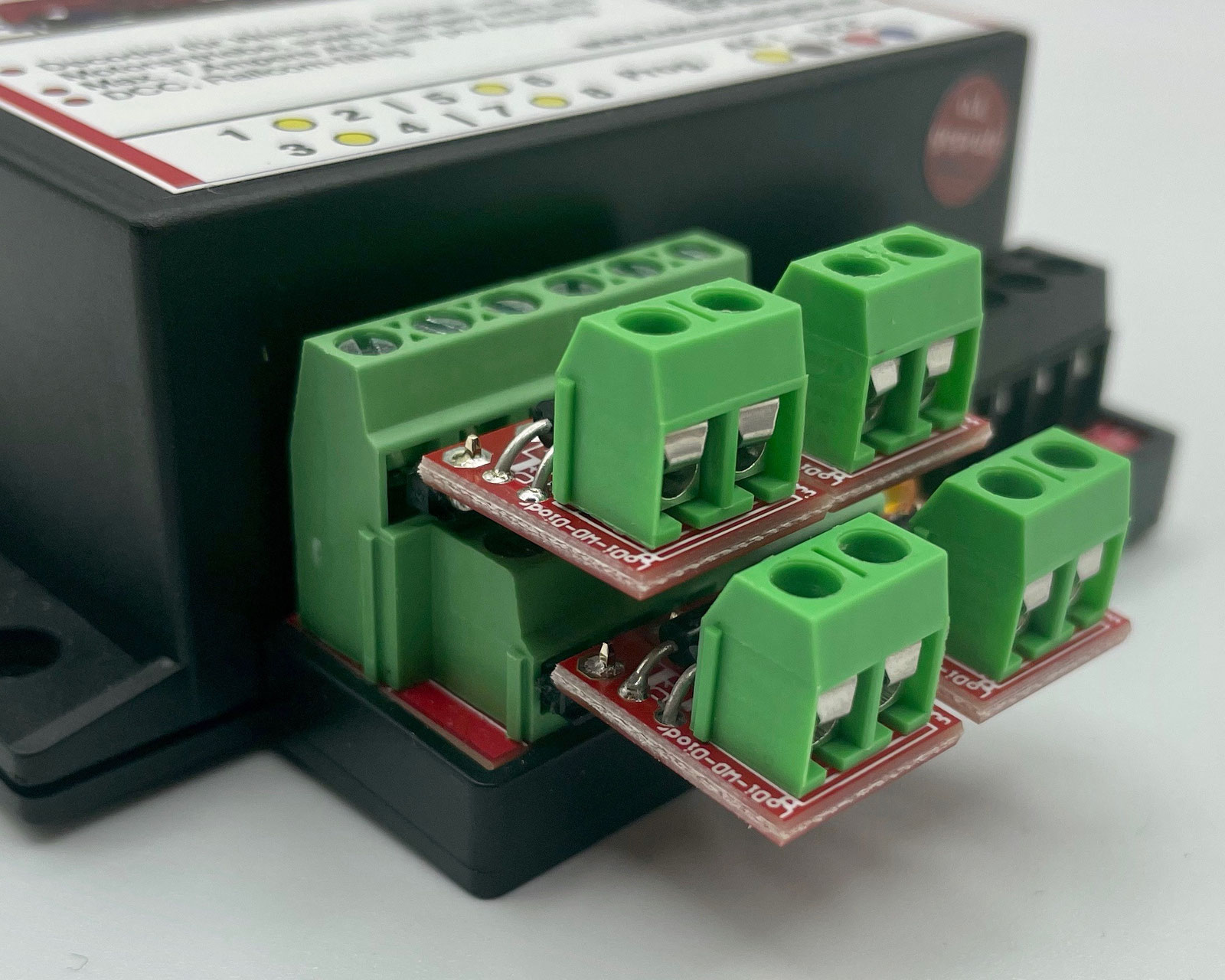

1. The LoDi-WD diode and its connections

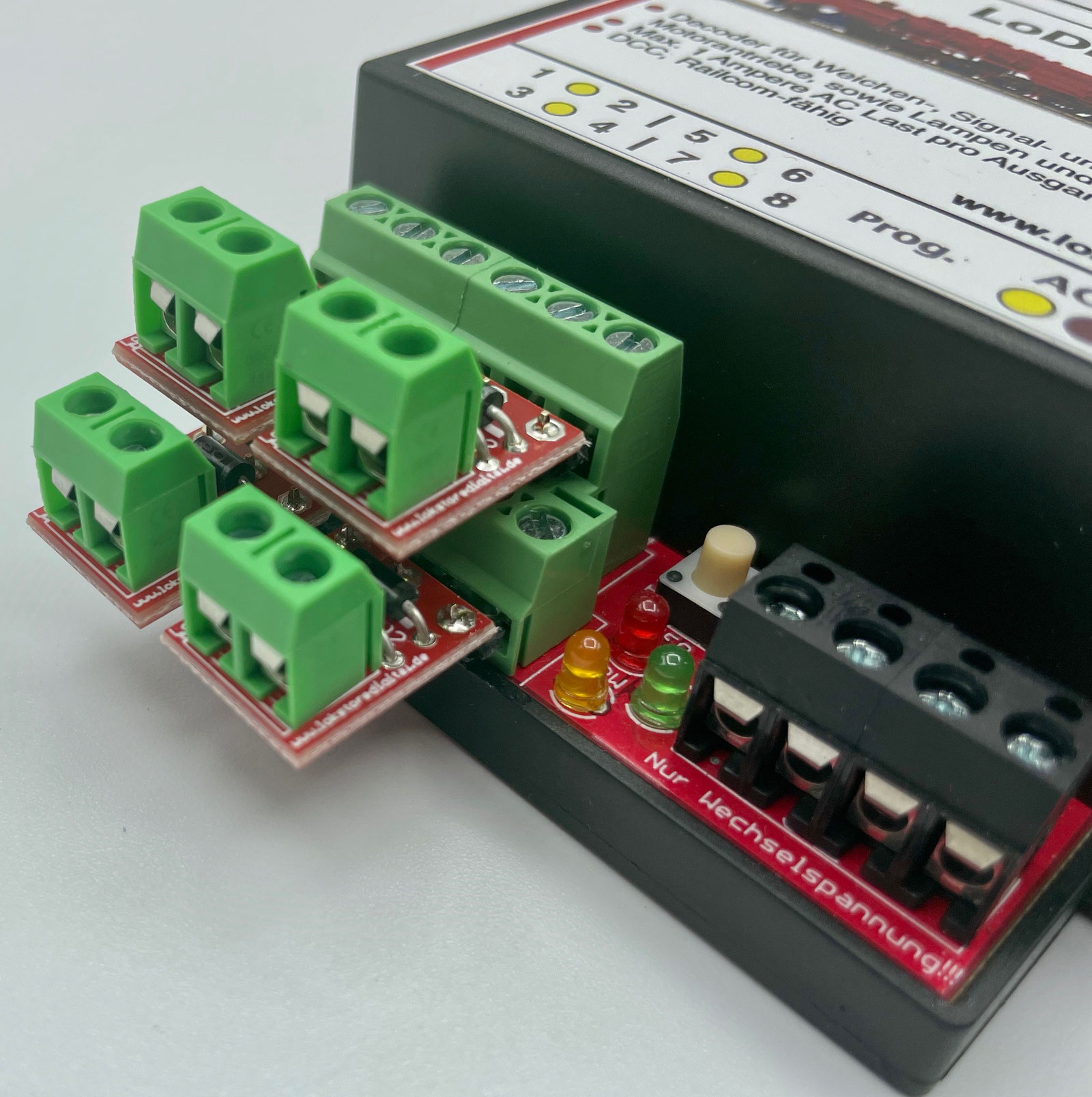

The LoDi-WD diode connects directly to the LoDi-83-AC or LoDi-Operator 4-WD-AC decoder.
Then connect your motor drive to the two output terminals on the output carrying the LoDi-WD diode.
Any motor and motor turnout can be driven this way; the run time of the output is set through the switching times in the LoDi-83-AC and LoDi-Operator 4-WD-AC decoders.

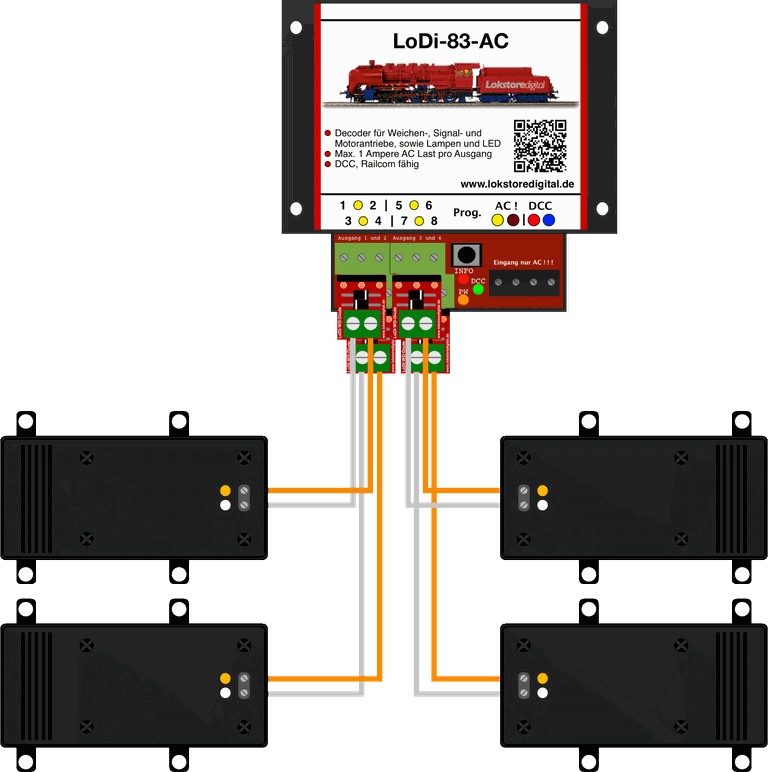

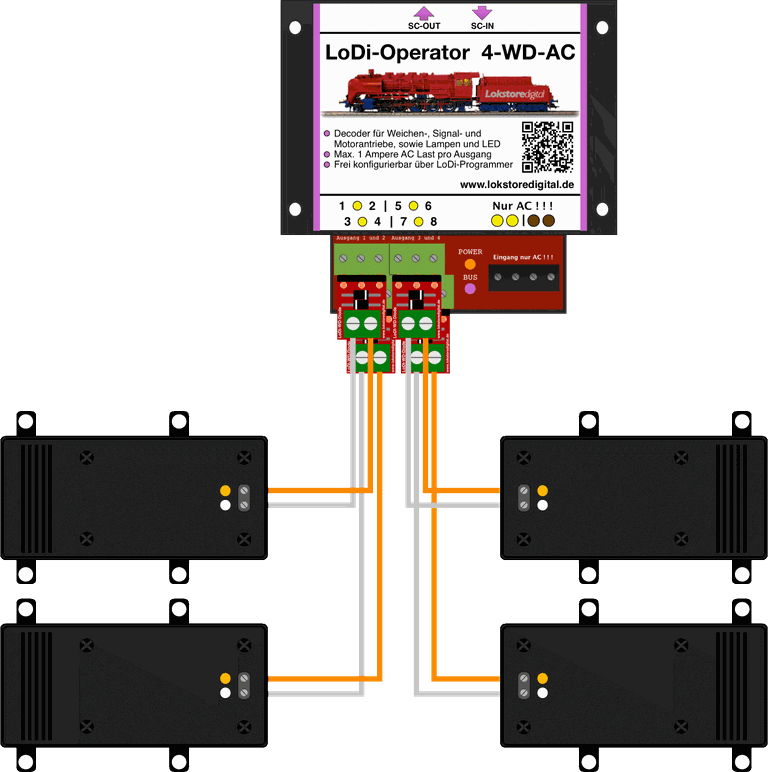

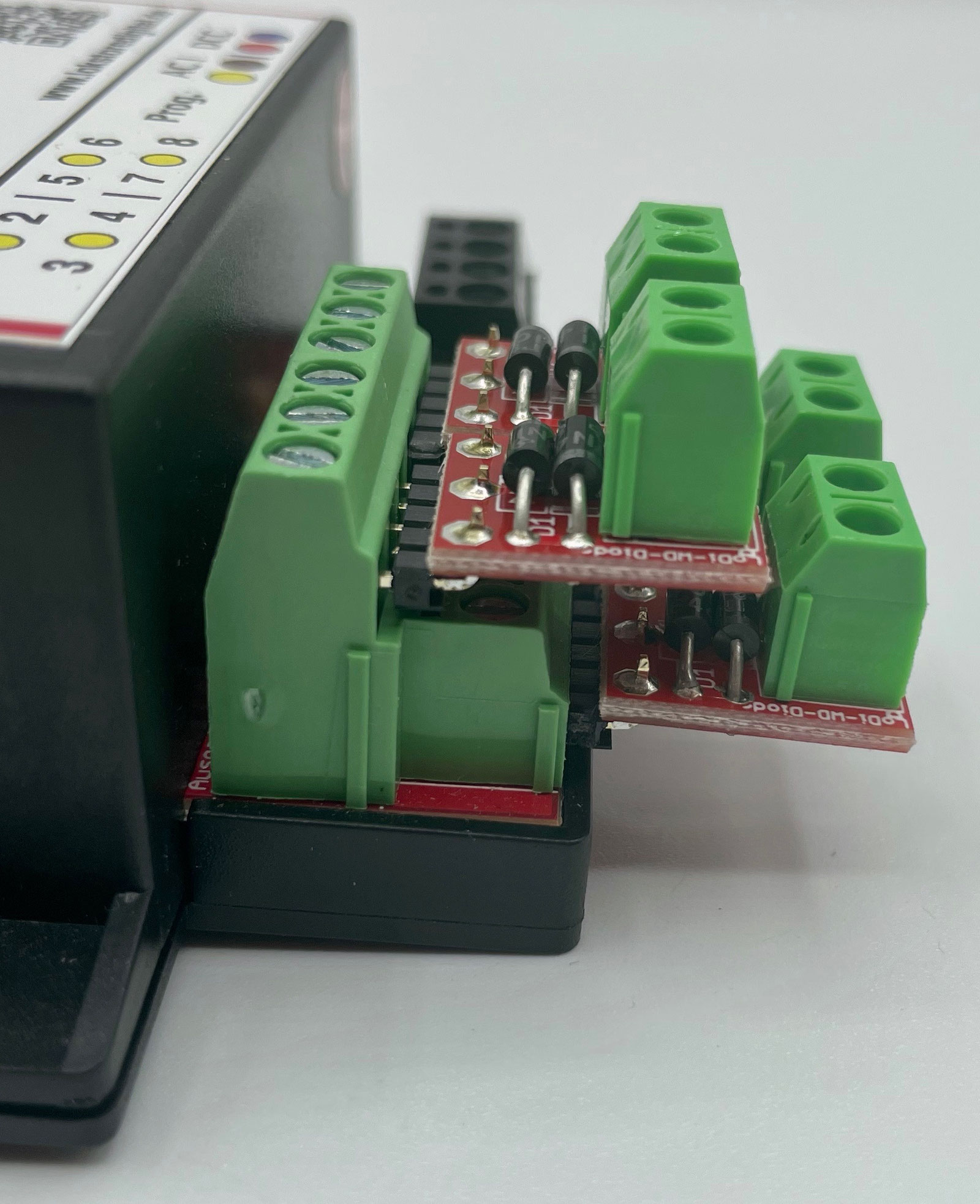

2. Wiring and installation examples
3. Technical data
The LoDi-WD diode carries a total of 2 amperes.
0–60 volt AC or DC input
| Property | Value |
|---|---|
| Dimensions | Length: 25 mm |
| Width | 14 mm |
| Height | 14 mm at its highest point |
| Weight | 7 g |
