LoDi-Verteiler 11-fach
The LoDi 11-way distribution board
The LoDi 11-way distribution board. Nothing special, but very useful day to day: a small distribution board or tie point for 11 poles, for extending cables such as turnout drive cables and the like.
Simply, quickly and securely mounted...
Features of the LoDi 11-way distribution board
- A simple 11-way distribution strip with solder pads
- For extending wiring
- Perfect as a tie point for turnout drives, signals, lamps, track . . .
- Available in packs of ten

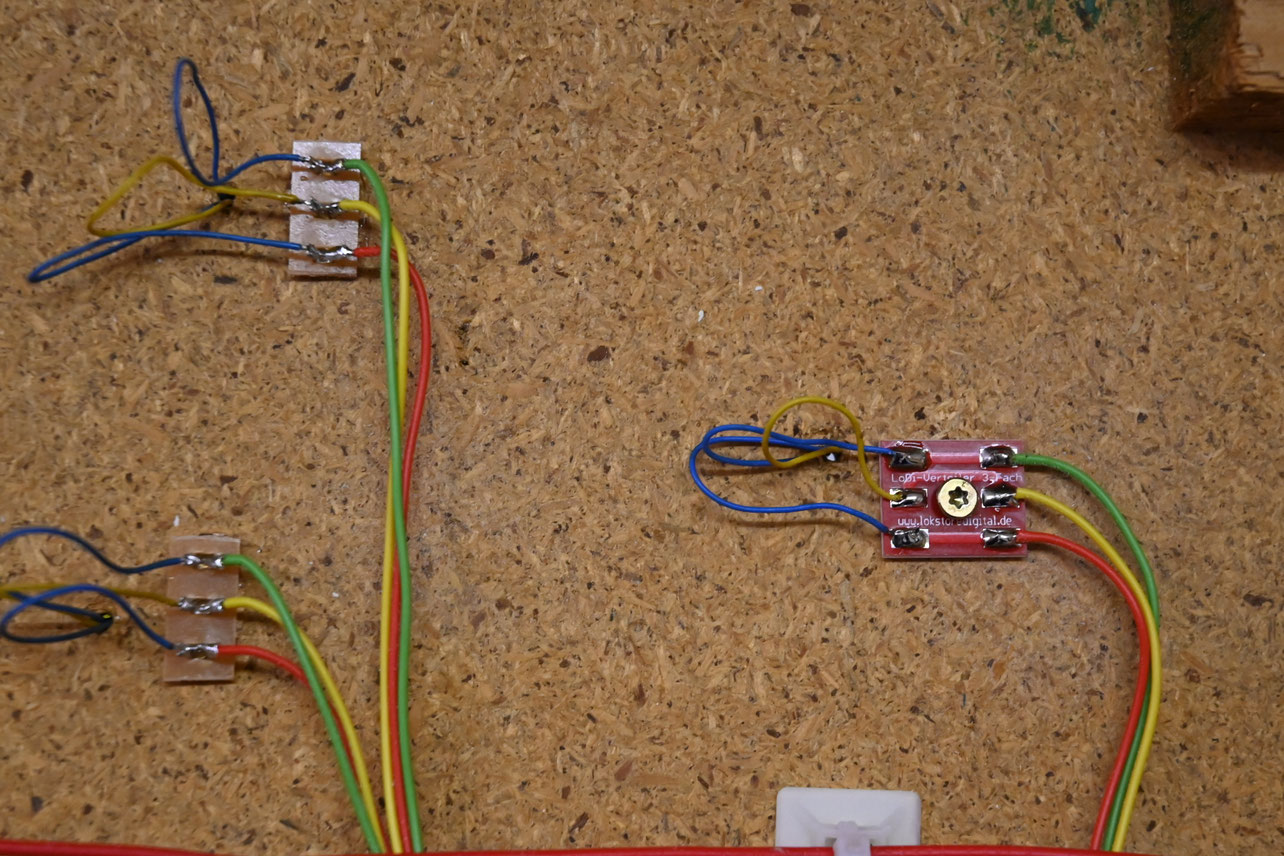

1. The LoDi 11-way distribution board and its connections
Out of our own long experience, and that of our partners who wire up customer layouts on site every day. Our small tie point for joining cables by solder pad.
Any kind of cable can be quickly unsoldered and soldered back on . . .
The board has a screw hole so it can simply be mounted. It can also be glued, depending on the mounting situation on your layout.
2. Technical data
The LoDi distribution board comes in several versions (3-way, 5-way, 7-way and 11-way). Each individual line is rated for a maximum of 5 amperes, regardless of the number of connections.
0–60 volt AC or DC input
| Property | Value |
|---|---|
| Dimensions | Length: 44 mm |
| Width | 20 mm |
| Height | 1.5 mm at its highest point |
| Weight | 2 g |
